6. Access requests

This chapter shows how to turn on the block page, and how to answer the users who ask for a blocked name.

Before you start:

• You have the role Admin to set up the block page. You have the role Operator or Admin to answer requests.
• You can change the file kudurru.yaml on the host and restart the node.
• At least one policy blocks names (Chapter 5).

How it works

By default, kudurru answers a blocked name with an address that does not work, or with NXDOMAIN. The browser shows an error. The user does not know why.

With the block page, kudurru answers a blocked name with the address of a small web server on the node. A browser that opens the name gets the kudurru block page. The page tells the user that the name is blocked and why. The page has a form that the user can use to ask for access.

1. The user opens a blocked name. The browser gets the block page.
2. The user sends the form. kudurru stores a request.
3. You see the request on the Requests page and answer it.
4. If you approve it, kudurru adds the name to an allow list.

Turn on the block page

1. Choose the address that clients use to reach the block page.

   • On one host, use the LAN address of the host.
   • In Docker, use the address of the host. The address of the container does not work for clients.
   • In Kubernetes, use the address of the block page service.

2. Add the lines below to kudurru.yaml. Use your own values.

   blockPage:
     enabled: true
     ipv4: 192.168.1.10
     title: This site is blocked
     message: The administrator of this network has blocked access to this domain.
     contact: it@example.net
     showDetails: true
   blocking:
     defaultResponse: blockPage


3. In Docker, publish a port for the block page. Add "80:8090" to the ports of the container. Add this line to kudurru.yaml:

   listeners:
     blockPage:
       http: "0.0.0.0:8090"


4. Restart the node.

5. Test the setting:

   dig @192.168.1.10 www.ads.example A +short


   The answer is the block page address. Replace www.ads.example with a name that a block list blocks.

The settings have these meanings:

You can set the block response for one policy or for one list instead. On the page of a policy, set Block response to Block page. On the page of a list, set the Block response in Settings.

NOTE: kudurru shows the block page for plain HTTP only. For a site that uses HTTPS, a browser shows a certificate warning or an error. See the block page reference for the reason. Do not install the certificate of the block page on the clients.

CAUTION: Clients and other resolvers keep a block answer for the block TTL. The default is 10 minutes. Make the block TTL shorter before you change the block page address.

Check the block page in the dashboard

The page Settings can show the block page with your settings. The preview uses an example reason. It does not read the query log.

Turn the request form on or off

The form is on by default. The setting unblockRequests.enabled controls it. These settings limit the requests:

Find the requests

The badge on Requests in the navigation list shows the number of pending requests. The dashboard also shows a blue notice. Click Review requests in the notice, or open Filtering > Requests.

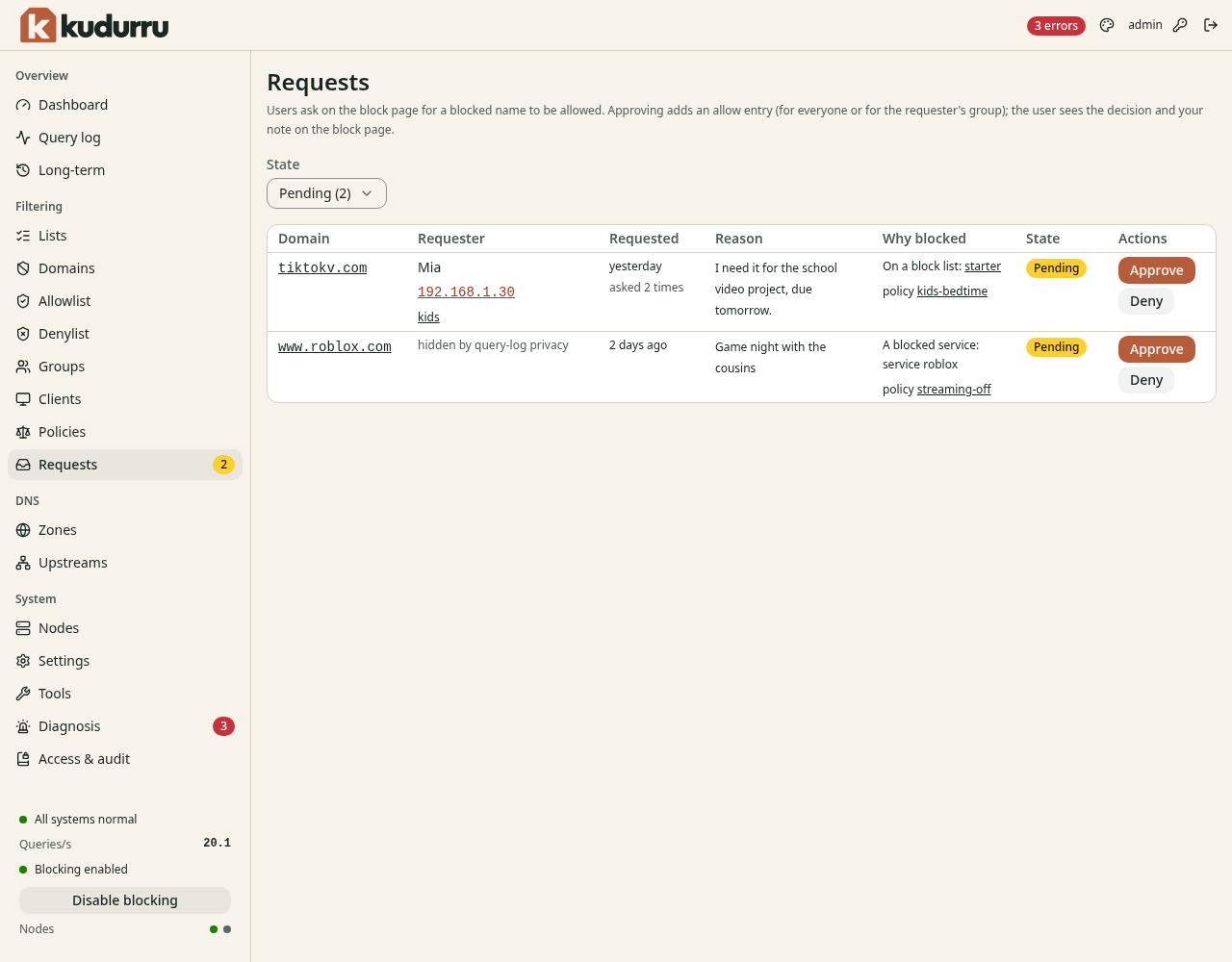

Figure 1 shows the page.

Figure 1. The page Requests.

The filter State has the values Pending, Approved, Denied, Expired and All.

NOTE: The privacy setting of the query log decides what the page shows about the requester. The page can show an anonymous network address or the text hidden by query-log privacy.

NOTE: The text in the columns Requester and Reason comes from the user. The dashboard shows it as plain text.

Answer a request

Approve a request

1. Open Filtering > Requests.
2. Click Approve in the row of the request. A dialog opens.
3. Select the Scope:
   • Everyone: all clients can use the name.
   • The requester's group: only the clients of the group of the requester can use it.
4. Select the Match: This name only, or This name and its subdomains.
5. Select the Duration. Permanently is the default. You can select 1 hour, 8 hours, 1 day or 7 days. You can enter another time.
6. Enter a Note if you want. The user sees the note on the block page. Use 500 characters at most.
7. Click Approve.

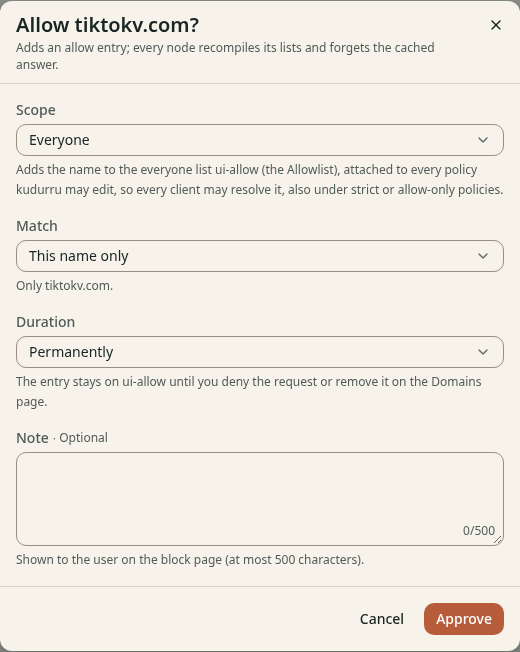

Figure 2 shows the dialog.

Figure 2. The dialog Approve.

kudurru adds an allow entry to the Allowlist. Then each node compiles its lists again and removes the cached answer. The user can open the site after a short time.

A time-limited approval ends by itself. kudurru removes the entry when the approval ends, but only if the approval added it.

CAUTION: kudurru cannot change a policy that is managed by file or managed by Kubernetes. It skips these policies, and the answer lists them. Add the allow list to these policies in the file or the resource. kudurru refuses an approval for a group when no policy covers the group.

Deny a request

1. Click Deny in the row of the request.
2. Enter a Note if you want. The user sees the note.
3. Click Deny.

To revoke an approval, find the request with the state Approved and click Deny. kudurru removes the allow entry.

Delete a request

1. Click the name of the request to open its page.
2. Click Delete.
3. Click Delete request.

If the approval was permanent, the allow entry stays on its list. To remove an approval that has a time limit, deny it first.

Read the page of a request

The page of a request shows the request, the decision, the recent queries of the client for this name, and the history of the decisions. The recent queries need the permission to read the query log.

Use the API

An approval, a denial and a deletion write an entry to the audit log. The roles Operator and Admin can do these actions. The role Auditor can read requests but cannot decide.

More details are in the block page reference.
